WHEELTOP Oversized Pulley Electronic Road Bike Groupset Hydraulic Disc Brake 2X3-14 speed
TOOQUV Cycling · Electronic Drivetrain
€520,00 EUR
€620,00 EUR
PRODUCT DETAILS +
WHEELTOP EDS-TX Carbon 2×14-Speed Wireless Electronic Road Bike Groupset
High Performance | 100% Wireless | Carbon | Hydraulic Disc Brake Options | Oversize Pulley
Take your road bike to the next level with the WHEELTOP EDS-TX Carbon.
Featuring a fully wireless electronic shifting system, carbon fiber components and an Oversize rear derailleur pulley system, the EDS-TX Carbon is designed for riders who demand fast shifting, precise control and high performance for training, racing and long-distance riding.
Available Brake Configurations
Rim Brake Version
Without Brake Calipers
7800 Hydraulic Brake Calipers
7800 PRO Hydraulic Brake Calipers
Please select the appropriate brake configuration according to your bicycle.
Key Features
- Fully wireless electronic shifting system
- 2×14-speed drivetrain
- Carbon fiber shift/brake levers
- Carbon fiber rear derailleur cage
- Oversize rear derailleur pulley system
- 12T / 18T pulley configuration

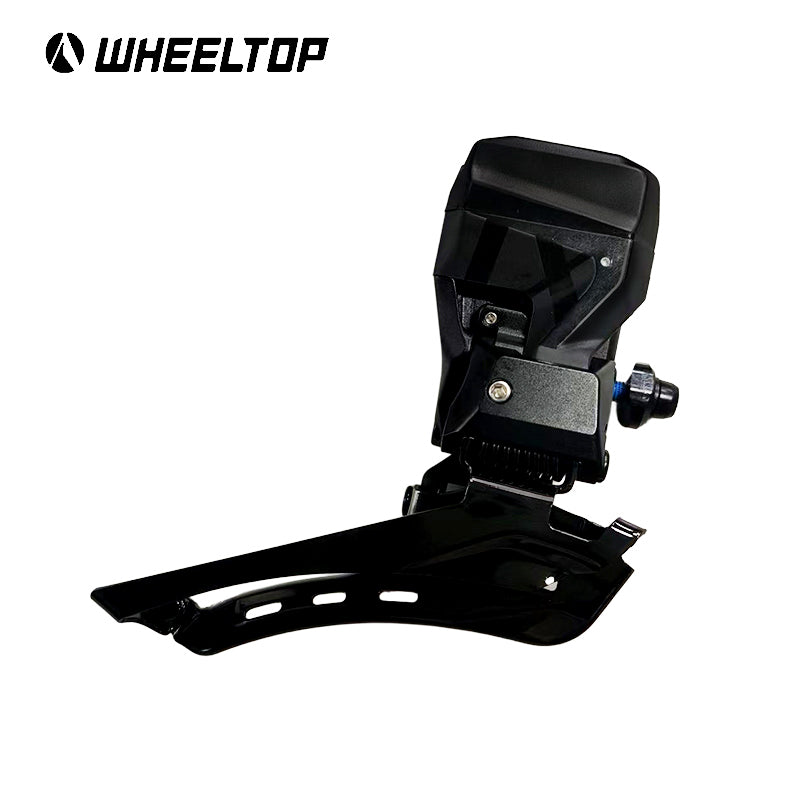

- Electronic front derailleur
- Multiple brake configurations available
- Bluetooth + ANT+ connectivity
- WheelTop App adjustment
- Magnetic charging
- IP67 protection
- Up to approximately 24,000 shifts per full charge
- Compatible with 10–36T cassettes
- Front chainring compatible up to 36T
Professional-Level Performance
The EDS-TX Carbon is designed to provide fast, smooth and consistent electronic shifting performance.
It delivers:
- Extremely fast electronic shifting
- Smooth gear changes even under load
- Reduced shifting effort
- Stable braking performance at high speeds
- Excellent performance on climbs and descents
Ideal for:
- Road bikes
- Speed bikes
- Structured training
- Racing
- Long-distance riding
Carbon Version
The Carbon version features carbon fiber components for a premium finish and sporty appearance.
Carbon Features
- Carbon fiber shift/brake levers
- Carbon fiber rear derailleur cage
- Premium finish
- Reduced weight
- High structural stiffness
- Sporty appearance

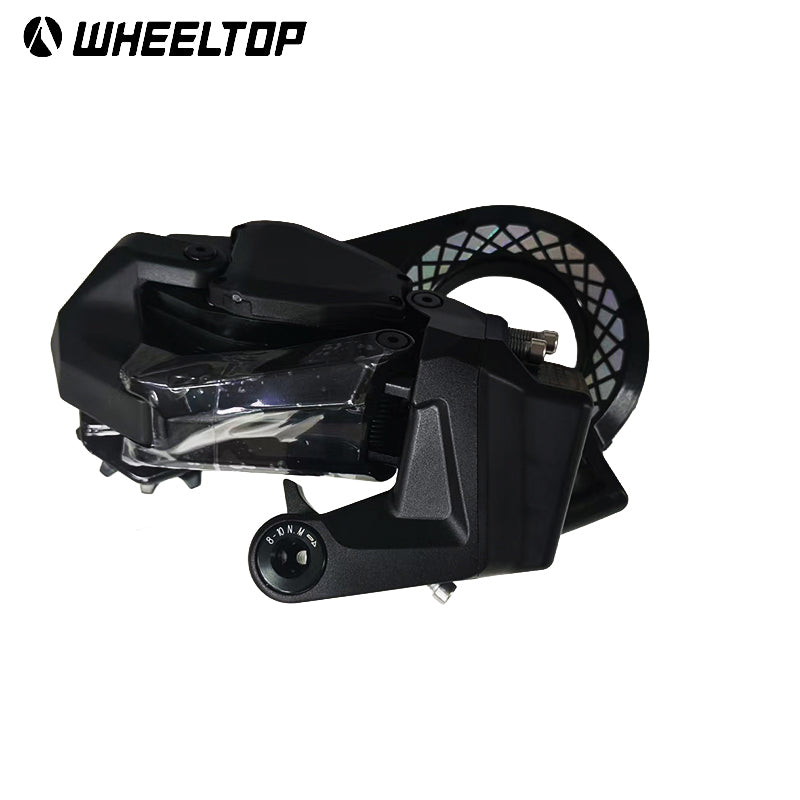

Oversize 12T / 18T Pulley System
The rear derailleur uses a 93 mm carbon fiber cage equipped with large pulley wheels.
Specifications
- Carbon fiber cage
- Upper pulley: 12T
- Lower pulley: 18T
- Cage length: 93 mm
- Ceramic + 440 stainless steel bearings
- Holographic finish
- Compatible with 10–36T cassettes
Benefits
- Reduced friction
- Improved chain stability
- Smoother shifting
- Excellent performance at higher speeds
Brake Configurations
The WHEELTOP EDS-TX Carbon is available with different brake configurations to accommodate different road bike setups.
1. Rim Brake Version
Designed for road bikes equipped with a compatible rim brake frame and braking system.
This configuration is suitable for riders who prefer a traditional rim brake setup.
2. Without Brake Calipers
This option includes the electronic shifting components without brake calipers.
It is suitable for customers who already have compatible brake calipers or want to use their existing braking system.
Please confirm compatibility before purchase.

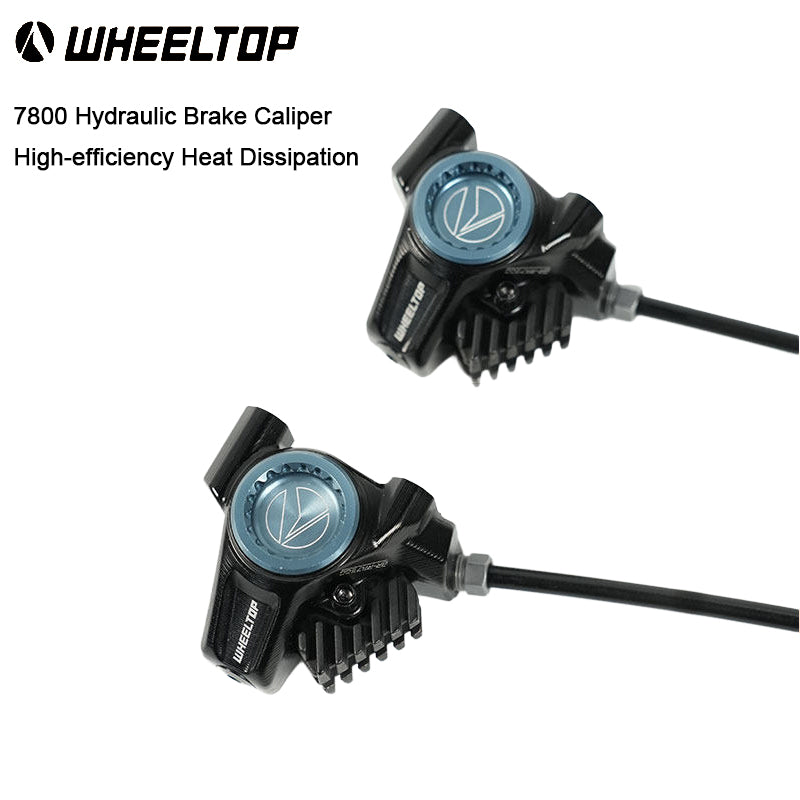

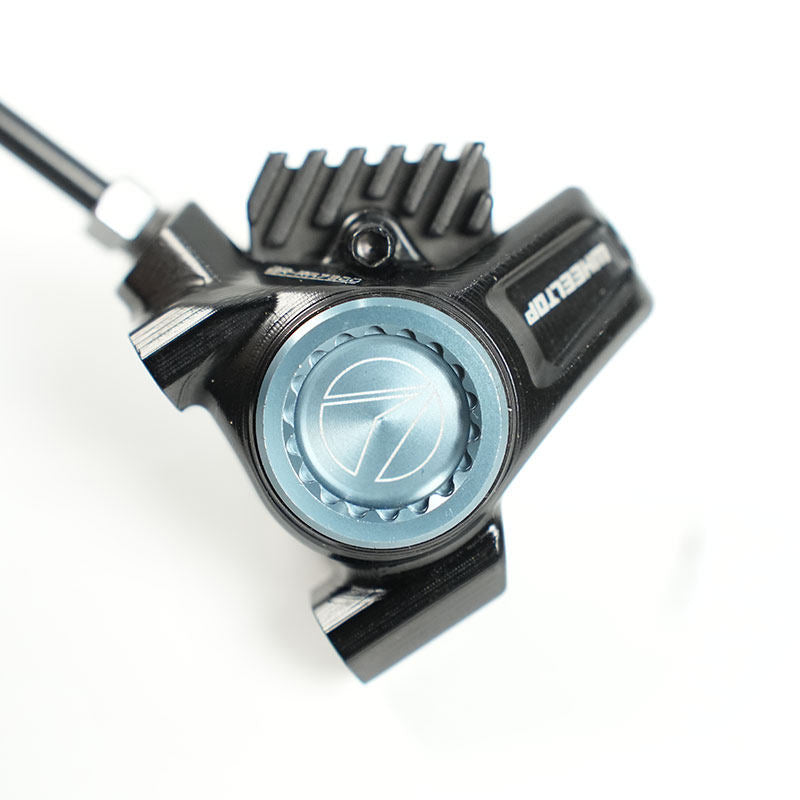

3. 7800 Hydraulic Brake Calipers
This configuration includes 7800 hydraulic disc brake calipers.
Approximate Weight
- Front caliper: 135 g
- Rear caliper: 170 g
Designed to provide powerful, stable and precise braking performance for road cycling.

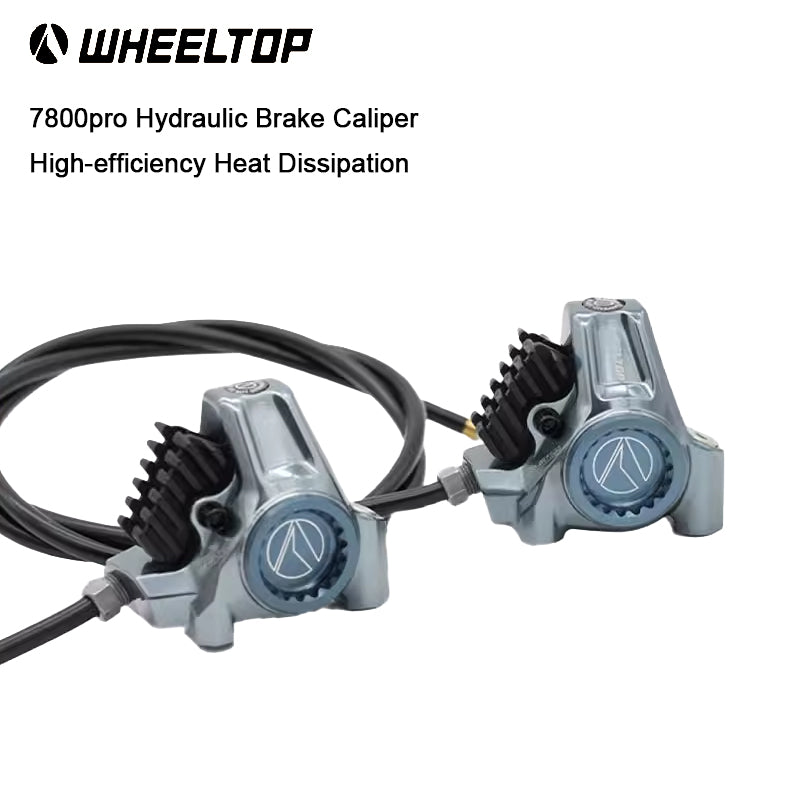

4. 7800 PRO Hydraulic Brake Calipers
This configuration includes 7800 PRO hydraulic disc brake calipers.
The PRO version is designed for riders looking for an upgraded braking configuration while maintaining the electronic shifting performance of the EDS-TX Carbon.
Please select the required brake configuration according to your bicycle frame and braking system.
Smart Electronic Technology
The EDS-TX Carbon supports:
- Bluetooth
- ANT+
- App-based adjustment
- Electronic system configuration
- Magnetic charging
- IP67 protection
- Up to approximately 24,000 shifts per full charge
Charging Time
Approximately 5–6 hours
Actual battery life and charging time may vary depending on usage conditions and operating environment.
Technical Specifications
| Specification | Details |
|---|---|
| Product | WHEELTOP EDS-TX Carbon |
| Drivetrain | 2×14-speed |
| Shifting System | Wireless Electronic Shifting |
| Shift/Brake Levers | Carbon Fiber |
| Front Derailleur | Electronic |
| Rear Derailleur | Carbon Oversize |
| Rear Derailleur Cage | 93 mm Carbon Fiber |
| Upper Pulley | 12T |
| Lower Pulley | 18T |
| Pulley Bearings | Ceramic + 440 Stainless Steel |
| Cassette Compatibility | 10–36T |
| Front Chainring Compatibility | Up to 36T |
| Connectivity | Bluetooth / ANT+ |
| Charging | Magnetic Charging |
| Protection | IP67 |
| Battery Life | Up to approx. 24,000 shifts per charge |
| Charging Time | Approx. 5–6 hours |
| Brake Options | Rim Brake / Without Calipers / 7800 / 7800 PRO |
Approximate Component Weights
- Front derailleur: 191.3 g
- Rear derailleur: 354.2 g
- Left shift/brake lever: 238.4 g
- Right shift/brake lever: 240.5 g
- Front 7800 caliper: 135 g
- Rear 7800 caliper: 170 g
Weights are approximate reference values and may vary slightly depending on production batches and measurement methods.
Compatibility
The WHEELTOP EDS-TX Carbon is designed for road bikes and is available with different brake configurations.
For the Rim Brake Version
- Road bike
- Frame compatible with rim brakes
- Compatible drivetrain configuration
- Cassette: 10–36T
- Front chainring: up to 36T
For Hydraulic Disc Brake Versions
- Road bike
- Frame prepared for hydraulic disc brakes
- Compatible drivetrain configuration
- Cassette: 10–36T
- Front chainring: up to 36T
For the Without Calipers Version
The bicycle must already have a compatible braking system and compatible brake components.
Final compatibility depends on the complete bicycle configuration, including the frame, cassette, chain, crankset, drivetrain, brake system, installation space and correct adjustment.
Important Before Purchase
Please select the correct brake configuration according to your bicycle.
Available Options
Rim Brake Version
Without Brake Calipers
7800 Hydraulic Brake Calipers
7800 PRO Hydraulic Brake Calipers
Before purchasing, please confirm:
- Your bicycle type
- Frame brake standard
- Current brake system
- Cassette specification
- Front chainring specification
- Available installation space
If you are unsure which configuration is suitable for your bicycle, please contact us before placing your order.
Send us your bicycle model, current drivetrain, cassette, chainring and brake information, and we can help check compatibility.

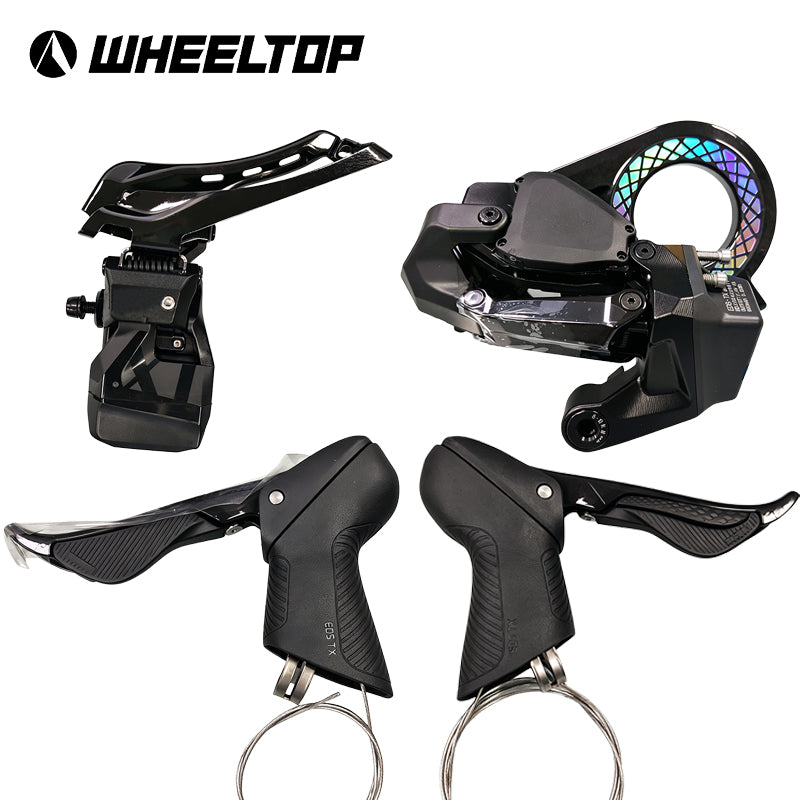

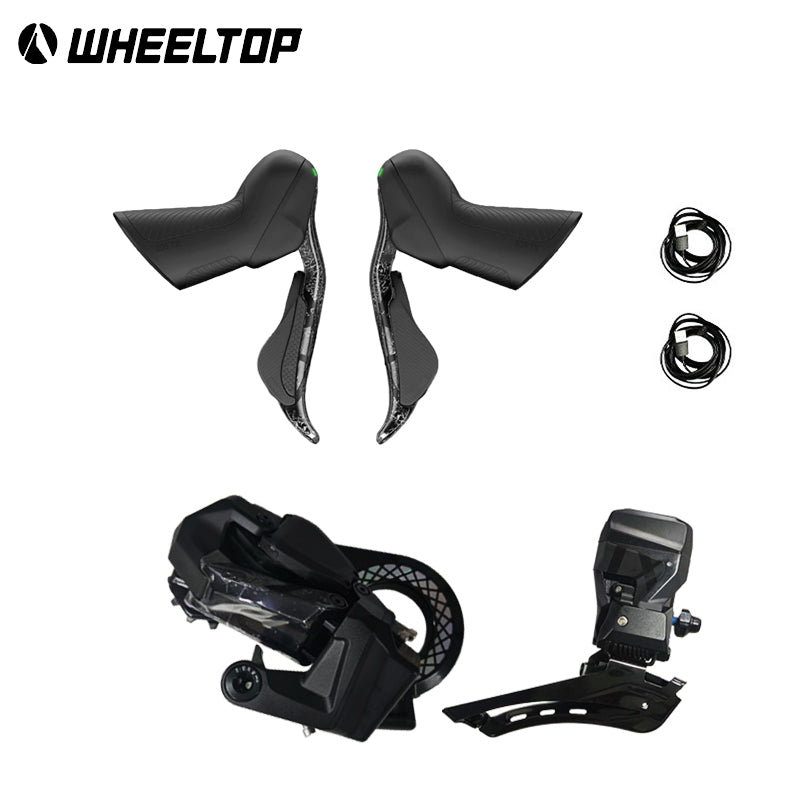

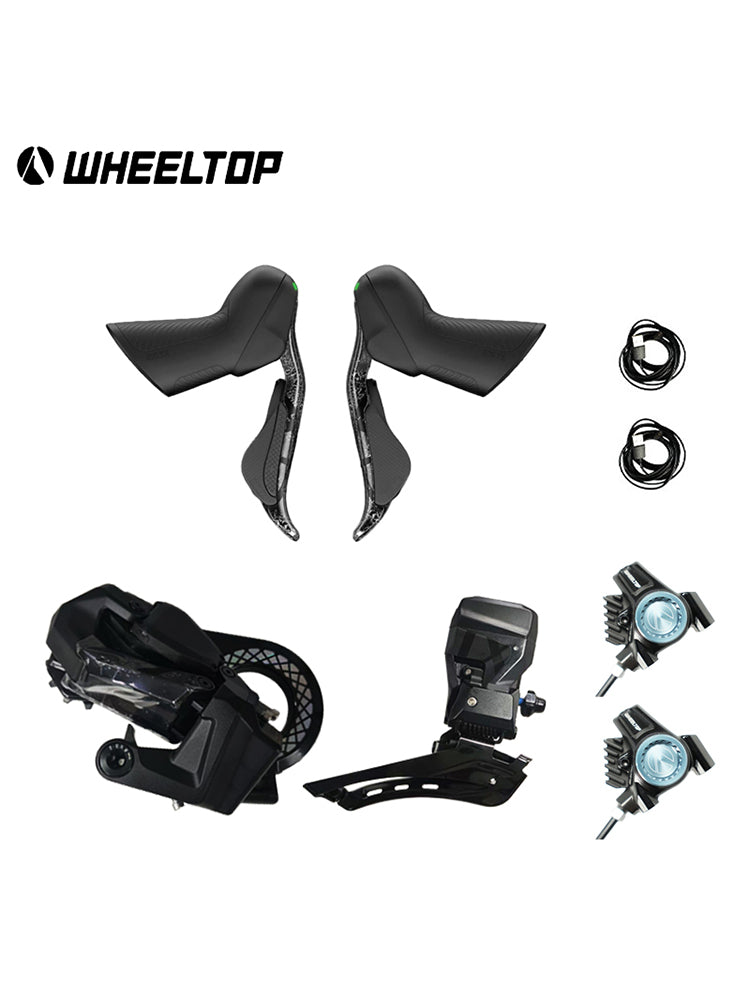

Package Contents
Electronic Shifting Components
- 1 pair of Carbon electronic shift/brake levers
- 1 electronic front derailleur
- 1 Carbon Oversize electronic rear derailleur
- Magnetic charging cable
- Installation kit
Brake Components
The brake components included depend on the selected configuration:
Rim Brake Version
Includes the corresponding rim brake configuration.
Without Brake Calipers
Does not include brake calipers.
7800 Version
Includes:
- 1 front 7800 hydraulic brake caliper
- 1 rear 7800 hydraulic brake caliper

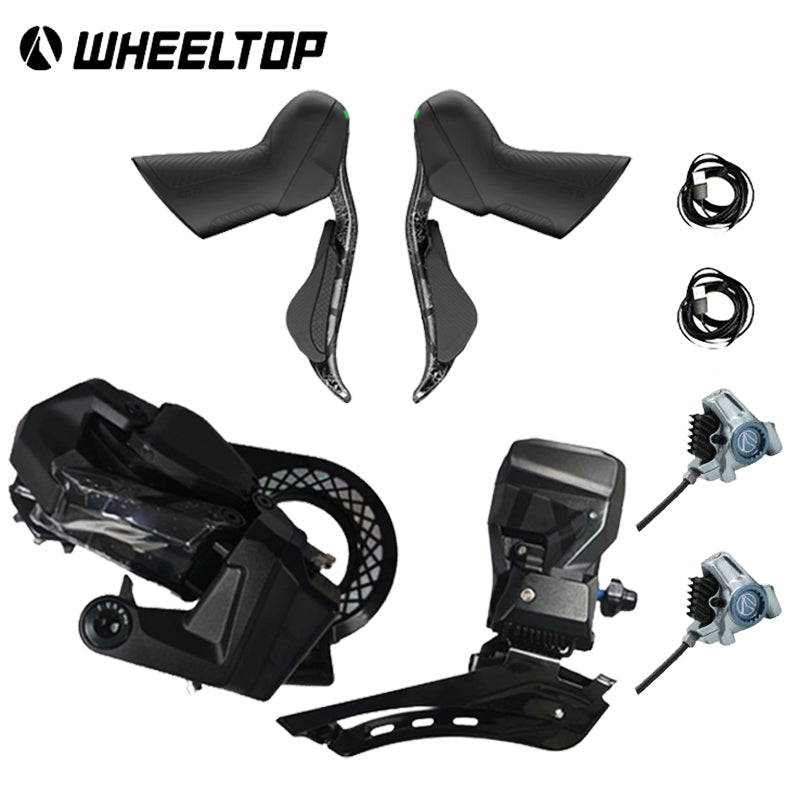

7800 PRO Version
Includes:
- 1 front 7800 PRO hydraulic brake caliper
- 1 rear 7800 PRO hydraulic brake caliper
Items Not Included
Unless specifically stated in the selected product configuration, the following items are not included:
- Cassette
- Chain
- Crankset
- Bottom bracket
- Brake rotors
- Wheelset
- Tires
- Other components not specifically listed under "Package Contents"
Installation
Professional Installation Recommended
Professional installation by a qualified bicycle mechanic is recommended.
Depending on the bicycle configuration and selected brake system, installation may involve:
- Brake component installation
- Hydraulic brake hose installation
- Hydraulic brake bleeding
- Electronic system setup
- Front derailleur adjustment
- Rear derailleur adjustment
- Drivetrain adjustment
Correct installation and adjustment are important for braking safety, accurate shifting and long-term system reliability.
