WHEELTOP EDS-TX Carbon 6000 Rim Brake Groupset

Wireless Electronic Road Bike Groupset

1X Single Chainring / 2X Double Chainring | 3–14-Speed | Hydraulic? No — Rim Brake Version

Carbon Fiber Shift/Brake Levers | Carbon Fiber Rear Derailleur Cage | Up to 36T Cassette

Product Overview

The WHEELTOP EDS-TX Carbon 6000 is a wireless electronic groupset designed for road bikes equipped with rim brakes.

It combines fast, precise and smooth electronic shifting with carbon fiber shift/brake levers and a carbon fiber rear derailleur cage, providing a clean cockpit, refined appearance and performance-oriented design for road cycling.

The system is available in both 1X single-chainring and 2X double-chainring configurations, supporting 3–14-speed rear drivetrains.

With wireless electronic shifting, Bluetooth and ANT+ connectivity, magnetic PogoPin charging and a recommended cassette range of 10–36T, the EDS-TX is suitable for road cycling, training and long-distance riding.

For selected European destinations, DDP shipping is available, providing a more convenient door-to-door delivery service with applicable import duties and taxes handled according to the selected DDP shipping solution.

Key Features

• Wireless electronic shifting system
• Available in 1X and 2X configurations
• Compatible with 3–14-speed drivetrains
• Electronic shifting adjustment through a compatible application
• 6000 Series rim brake version
• Carbon fiber shift/brake levers
• Carbon fiber rear derailleur cage
• Recommended cassette range: 10–36T
• Internal rechargeable batteries
• Up to approximately 24,000 shifts per full charge
• Fast, smooth and precise shifting
• Clean and modern installation with reduced cable routing
• Bluetooth + ANT+ connectivity
• Designed for road bikes, training and long-distance cycling

Product Highlights

1. Fast and Precise Electronic Shifting

The EDS-TX electronic shifting system provides fast, smooth and consistent gear changes, helping riders maintain efficient and controlled shifting during road cycling.

The system is designed for responsive shifting during climbing, acceleration, training and long-distance rides.

2. Wireless Electronic Shifting

The electronic shifting system uses wireless communication between the electronic components, reducing traditional mechanical shifting cables and creating a cleaner and more organized cockpit.

Benefits include:

• Cleaner appearance
• Reduced cable routing
• More convenient installation
• Modern cockpit setup

Important: The shifting system is electronic and wireless. This is a rim brake version, so the braking system uses conventional mechanical brake cables rather than hydraulic brake hoses.

3. 3–14-Speed Compatibility

The EDS-TX supports rear drivetrains from 3 to 14 speeds.

Electronic shifting settings can be adjusted through a compatible application, allowing the system to be configured for different drivetrain setups.

4. 1X and 2X Configurations

1X — Single Chainring

The 1X configuration is designed for riders who prefer a simpler drivetrain with a single front chainring.

Configuration:

1X front + 3–14-speed rear

The 1X version does not require a front derailleur.

2X — Double Chainring

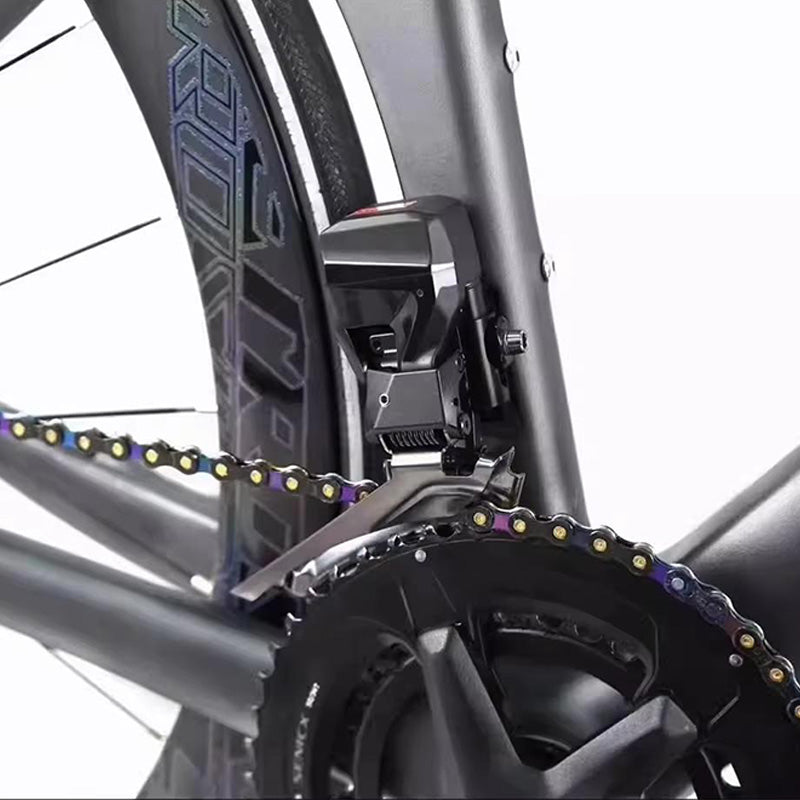

The 2X configuration includes an electronic front derailleur and is designed for traditional road bike drivetrains with two front chainrings.

Configuration:

2X front + 3–14-speed rear

The larger front chainring is compatible with sizes up to 52T, depending on the specific drivetrain configuration.

5. Carbon Fiber Components

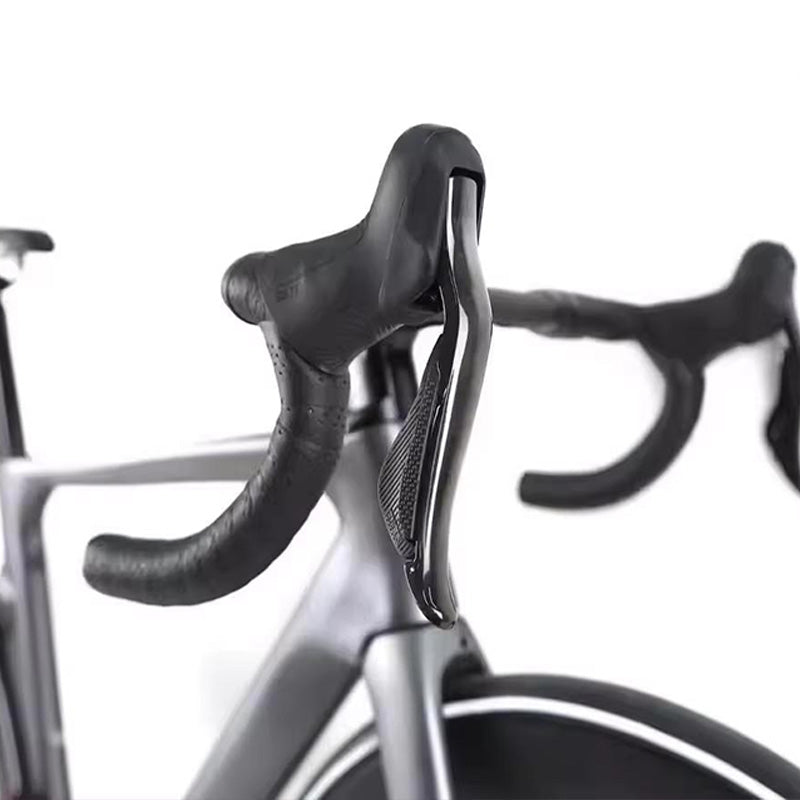

The Carbon 6000 version features carbon fiber shift/brake levers and a carbon fiber rear derailleur cage.

These components provide a lightweight, sporty appearance and refined finish while helping reduce component weight compared with conventional versions.

6. Long-Lasting Internal Batteries

The EDS-TX uses integrated rechargeable batteries designed for extended riding.

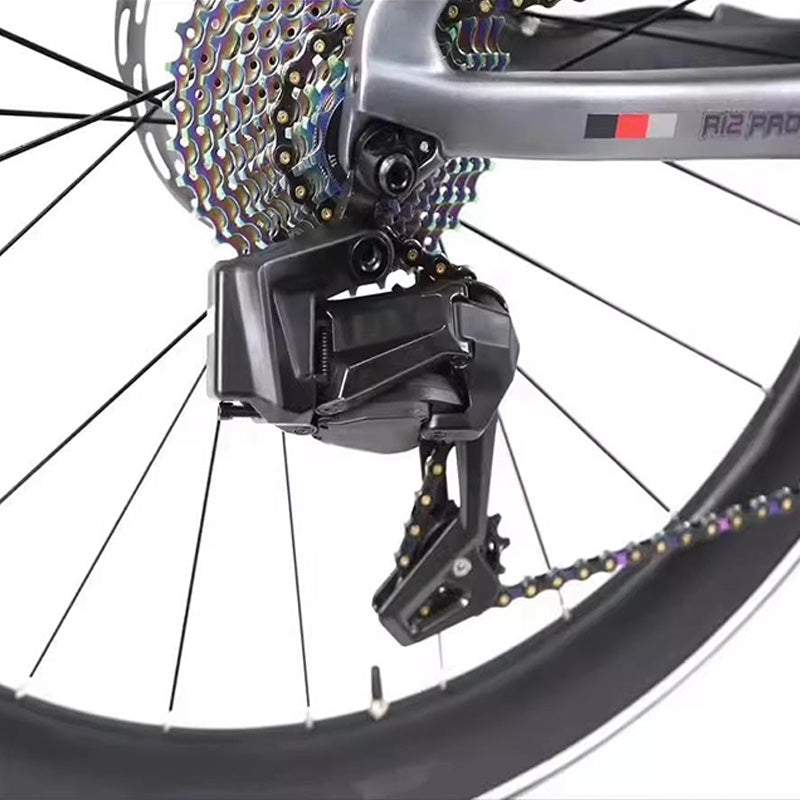

Rear Derailleur

800 mAh

Front Derailleur

500 mAh

Approximate Battery Life

Up to approximately 24,000 shifts per full charge, depending on usage and riding conditions.

The system uses a magnetic PogoPin charging connection for convenient charging.

7. Bluetooth + ANT+ Connectivity

The system supports:

BLE / ANT+

Compatible devices and applications can be used for system configuration, shifting adjustment and related settings.

Technical Specifications

Approximate Component Weights

• Front derailleur: 191.3 g
• Rear derailleur: 337.3 g
• Left shift/brake lever: 202.3 g
• Right shift/brake lever: 214.6 g

Weights are approximate reference values. Actual weight may vary slightly depending on production batch and measurement method.

Compatibility

Before purchasing, please carefully check your bicycle specifications.

1X Configuration

• Road bike
• Rim brake frame
• 1X single-chainring drivetrain
• 3–14-speed rear drivetrain
• Recommended cassette: 10–36T
• Compatible drivetrain components

2X Configuration

• Road bike
• Rim brake frame
• 2X double-chainring drivetrain
• 3–14-speed rear drivetrain
• Recommended cassette: 10–36T
• Front chainring up to 52T
• Compatible drivetrain components

Not Compatible With

• Disc brake systems
• Hydraulic disc brake systems
• Frames specifically designed for disc brakes

Final compatibility depends on the complete bicycle configuration, including the frame, cassette, chain, crankset, chainrings, rear derailleur, wheelset, brake system, installation space and correct adjustment.

Important Before Purchase

This product is designed for road bikes equipped with rim brakes.

Before placing your order, please confirm:

• Your bicycle uses a rim brake system
• You are selecting the correct 1X or 2X configuration
• For the 2X version, the largest front chainring does not exceed 52T
• The rear cassette is within the recommended 10–36T range
• Your frame and drivetrain components are compatible with the EDS-TX system

Do not purchase this model if your bicycle uses disc brakes or is designed specifically for a disc brake system.

If you are unsure about compatibility, please contact us before purchasing. Send us your bicycle specifications or photos, and we can help check whether the EDS-TX is suitable for your bike.

Package Contents

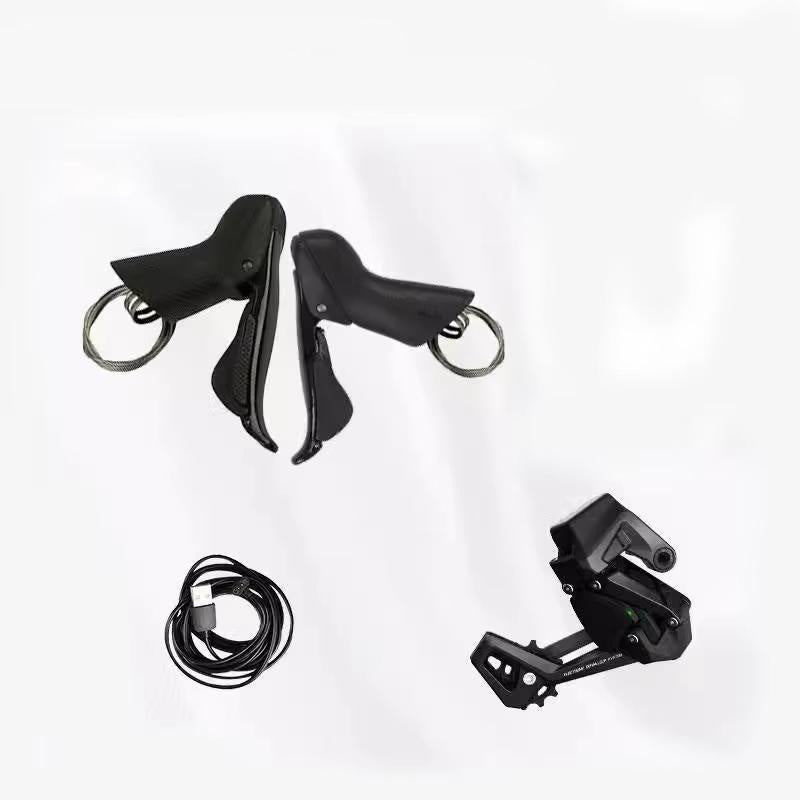

1X Configuration

• 1 pair of wireless carbon fiber electronic shift/brake levers
• 1 wireless electronic rear derailleur with carbon fiber cage
• Magnetic charging cables
• Installation accessories

Note: The front derailleur is not included or required for the 1X configuration.

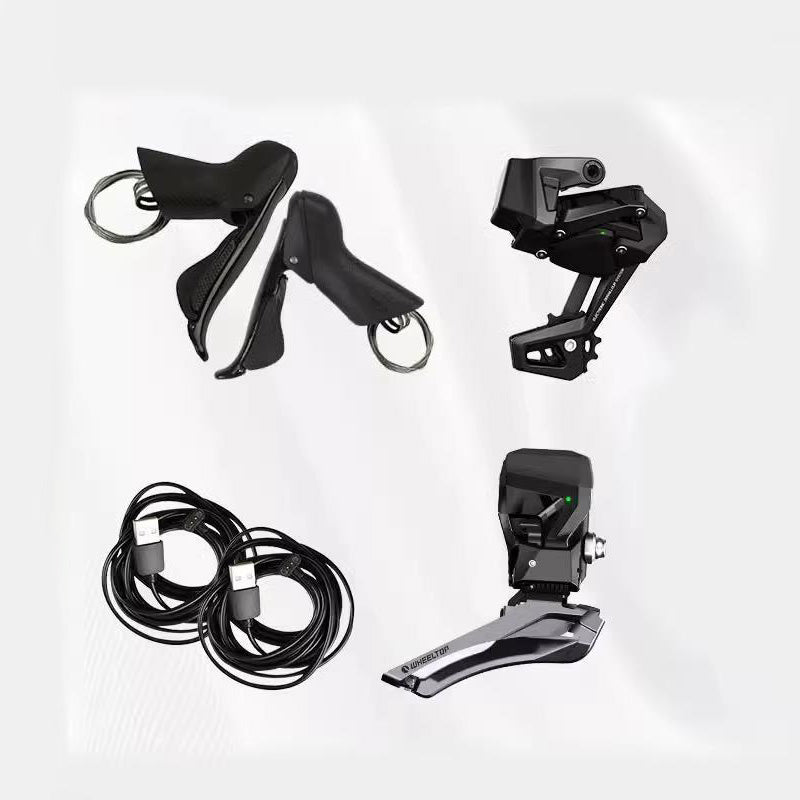

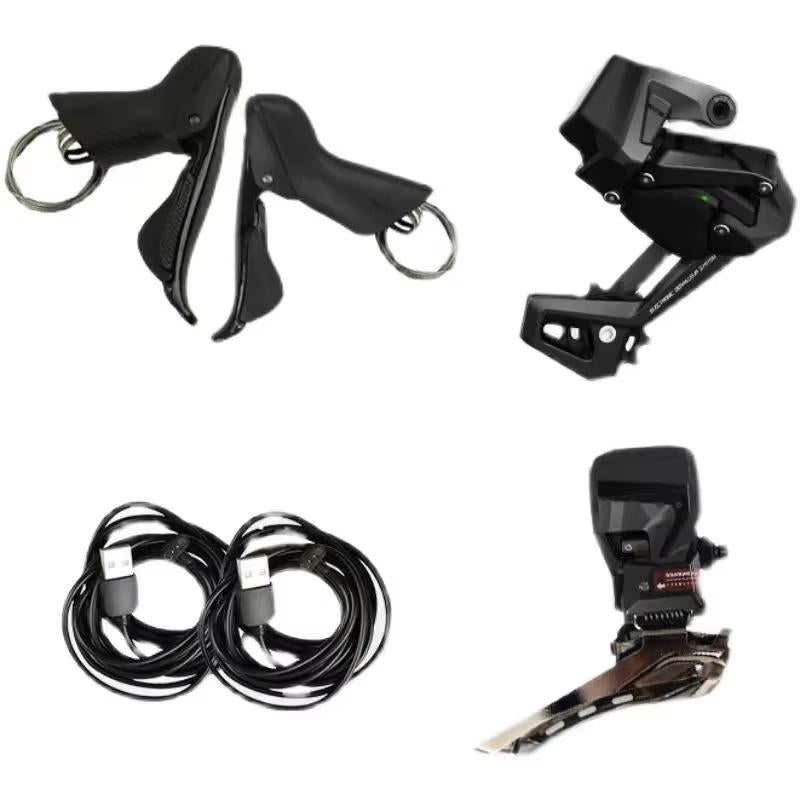

2X Configuration

• 1 pair of wireless carbon fiber electronic shift/brake levers
• 1 wireless electronic front derailleur
• 1 wireless electronic rear derailleur with carbon fiber cage
• Magnetic charging cables
• Installation accessories

Shipping & Warranty

Shipping From

China

Worldwide Shipping

Available to selected destinations worldwide.

DDP Shipping

DDP shipping is available to selected European countries and regions.

For eligible destinations and shipping services, applicable import duties, VAT and customs clearance costs are handled according to the selected DDP shipping solution.

Shipping availability, delivery times and DDP coverage may vary depending on the destination country.

Please check the shipping options available at checkout for the latest information.

Warranty

1-year TOOQUV store warranty

The product is covered by a 1-year store warranty according to our warranty terms.

EU Consumer Rights

For customers located in the European Union, applicable statutory consumer rights remain unaffected.

This includes mandatory legal rights and statutory conformity protections provided under applicable EU and local consumer protection laws.

Need Help Checking Compatibility?

Not sure whether the WHEELTOP EDS-TX Carbon 6000 is compatible with your bicycle?

Please contact us before placing your order and provide:

• Bicycle model
• Current drivetrain
• Current number of speeds
• Cassette specification
• Chainring specification
• Current brake type
• Handlebar type
• Rear derailleur and frame configuration

Based on the information you provide, we can help check whether the selected 1X or 2X EDS-TX configuration is suitable for your bicycle.
